ZL30F front end wheel loader for sale

Front End Wheel Loader ZL30F


  MODEL 938M WASTE HANDLER WHEEL LOADER
  Rated load 3000 kg
  Operating weight(standard bucket) 9600 kg
  Bucket capacity 1.8 m3
  Min. Turning radius 5097 mm
  Overall dimension 6890 * 2370 * 3070 mm
  Max. Tractive force 97 kN
  Max. Breakout force 127 kN
  Max. Dumping height 3200 mm
  Gearbox Countershaft powershift
  Gear shift  Forward 4 and reverse 2
  Torque converter  Single stage, 3 elements
  Max. Travel Speed 40 km/h
  Axles Dry type with air over oil capiler brake
  Engine Model WEICHAI WP6G125E22
  Rated Power 92 kW @ 2200 r/min
  Tire Size 17.5-25

938M waste master application APPLICATION
(1) KAVY 938M Waste Handler provides high productivity with 1.8 m3 bucket, pallet fork and hydraulic quick coupler.
(2) 938M waste maste can change the bucket and pallet fork in a few minutes with the hydraulic quick coupler.
(3) High reliable components can protect 938M waste handler from the harsh environment of a waste handling application.

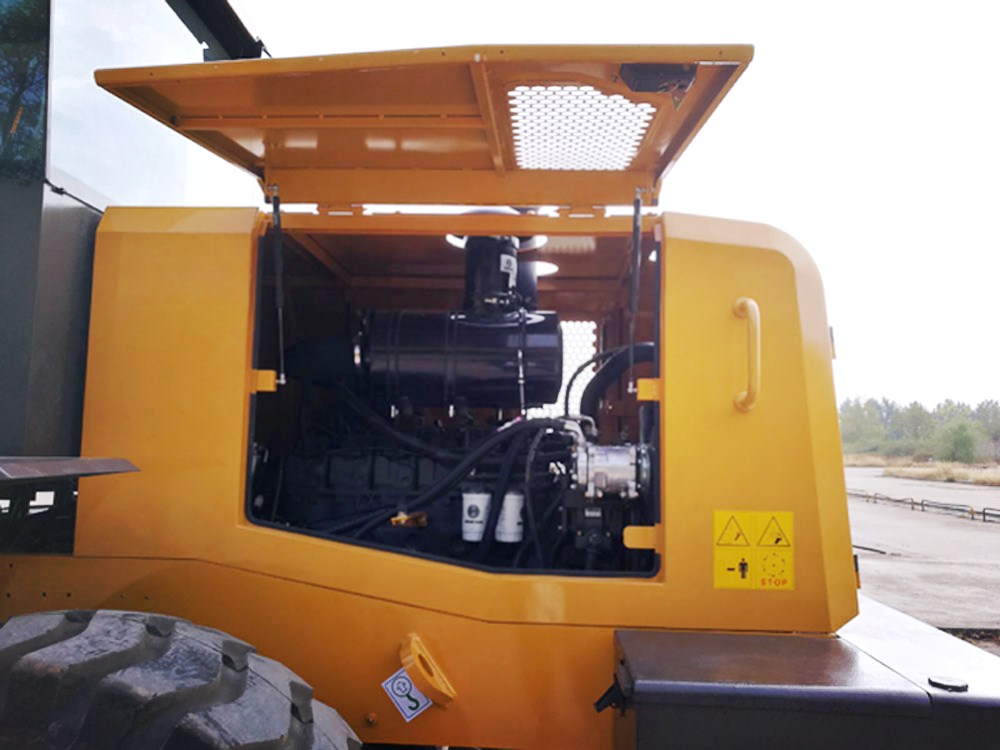

938M waste handler engine ENGINE
(1) WEICHAI WP6G125E22 high torque 92kW TIER2 turbocharged 6-cylinders diesel engine provides great power and low fuel consumption.
(2) High quality filters can extend your engine life and the maintenance costs are very low.
(3) CUMMINS 6BTA5.9-C130 high torque 97kW TIER2 turbocharged 6-cylinders diesel engine is optional.
938M waste handler hydraulic system HYDRAULIC SYSTEM
(1) High pressure hydraulic pump provides shorter hydraulic cycle times and higher productivity.

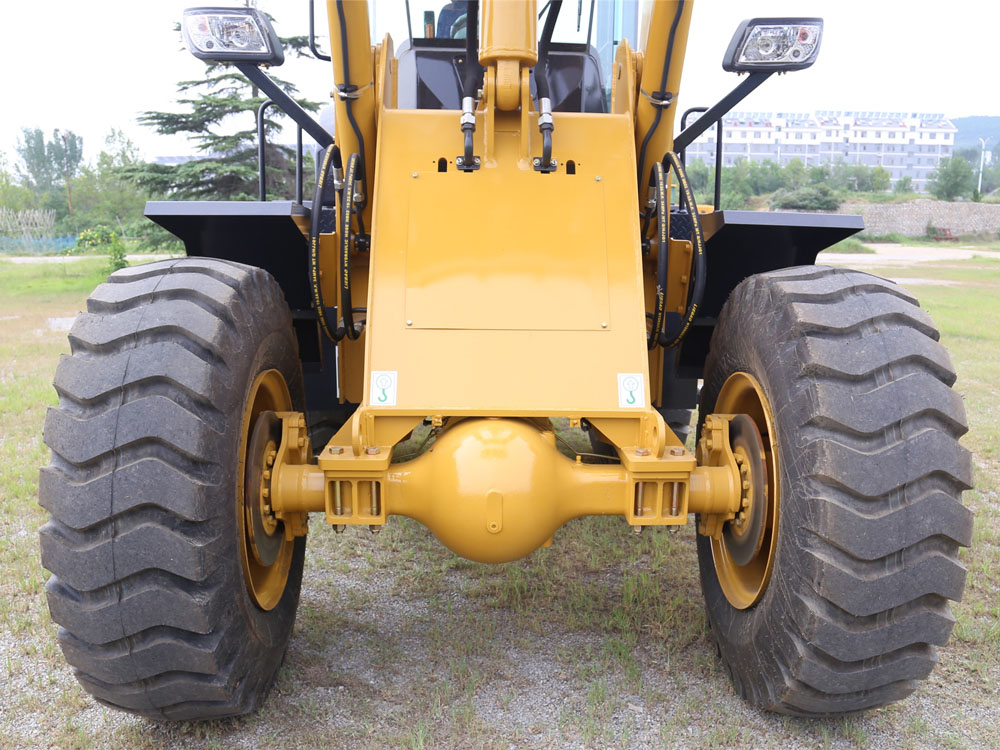

938M waste handler tire TIRES
(1) AEOLUS 17.5-25-12PR tires provides longer tire life and lower operating cost.

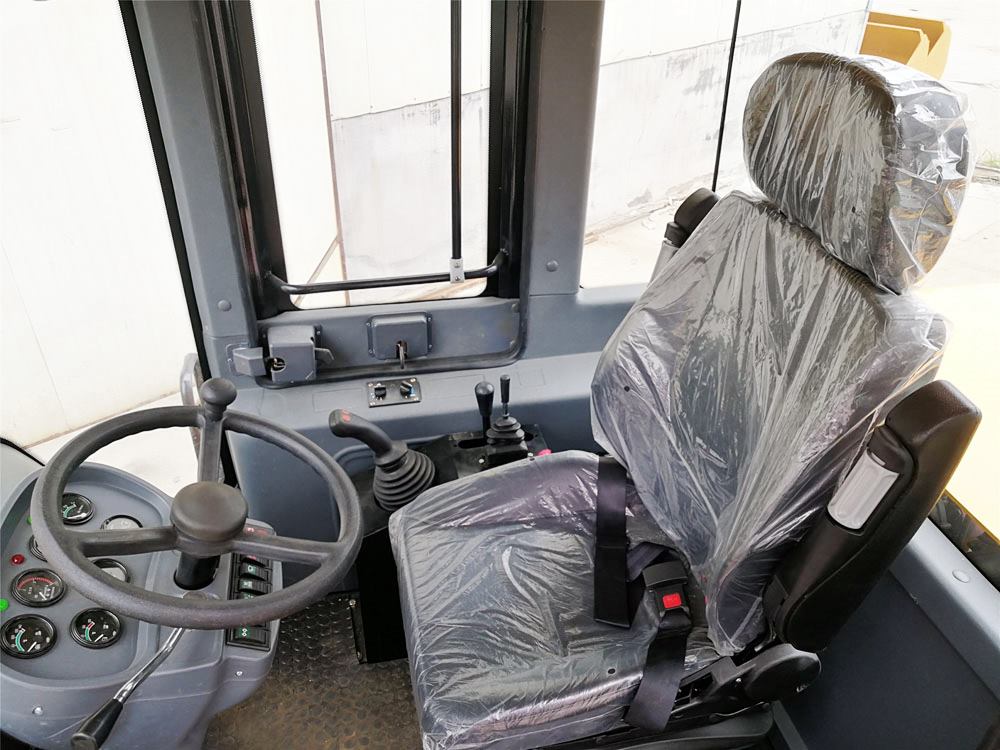

938M waste handler cabin CABIN
(1) Safe and large spacious all view cabin and Standard single joystick hydraulic pilot control keeps your works comfortable.
(2) high back adjustable suspension seat with armrest and safety belt provides high safety and comfort.
(3) Hydraulic pilot control single joystick and 3rd function joystick for quick coupler are standard.
(4) Cold and heated Air conditioner is standard.
(5) Fire extinguish is standard.
(6) Rear view camera with LCD display is standard.
(7) Rear view mirrors and LED working lights are standard.
(8) Electric control joystick for gear shifting is optional.

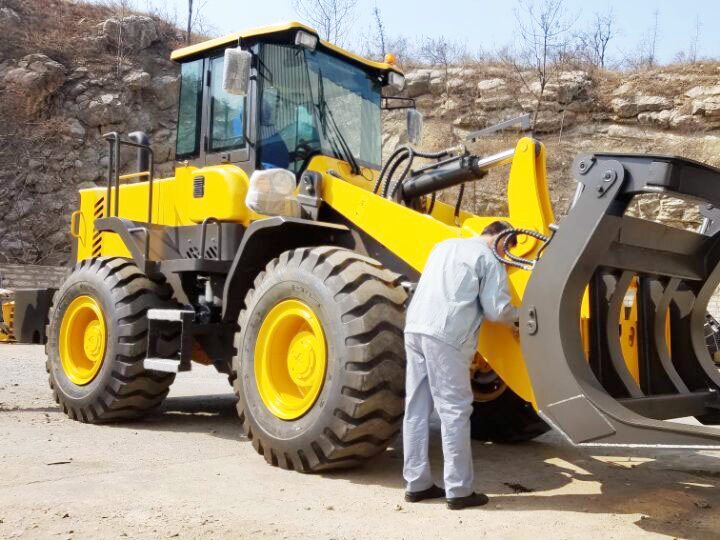

938M waste handler service SERVICE
(1) Maintenance period is suggested.
(2) One year’s warranty.
(3) Parts supplying all service life.
(4) Repairing support online.
