XCMG LW500FN front end wheel loader payloader

   XCMG LW500FN front end wheel loader (payloader) with 2.5~5.0 m3 bucket and 162kW engine price new is for sale in Russia, Australia, Indonesia, Saudi Arabia, Iran, Thailand, UAE, Philippines, Malaysia, South Africa, New Zealand, Qatar, Sudan, Angola, Kenya, Oman, Tanzania, Ghana, Congo, Cameroon, Uganda, Zambia, Gabon, Mozambique, Botswana ,Namibia.

FRONT END WHEEL LOADER	XCMG LW500FN
Rated load	5000 kg
Bucket capacity	2.5 ~ 5.0 m3
Machine weight	16900 kg
Dumping height	3150-3560 mm
Dumping reach	1100-1190 mm
Wheel base	2960 mm
Tread	2250 mm
Breakout force	170 kN
Boom raising time	6 s
Total cycling time	10.5 s
Min. Turning radius over tyres	5950 mm
Articulation angle	35 °
Gradeability	28 °
Tyre size	23.5-25-16PR
Overall dimension (LxWxH)	7910x3016x3515 mm
Engine model	WEICHAI WD10G220E21
Rated power	162 kW
Max. Travel speed	40 km/h
Gear shift	F2R1

Engine : With stronger power and higher torque, WEICHAI WD10G220E21 engine can achieve instantaneous overload during shovel loading work and provide enough power for heavy duty work. The filter effect of XCMG special three-stage desert filter is better.
Transmission : XCMG wheel loader LW500FN adopts XCMG patented high-torque heavy-duty planetary gearbox and hydraulic torque converter, which are more energy-efficient and reasonably matched. The special torque converter ensures maximum use of engine power.
Driving axles : The main reducer bevel gears of XCMG patented heavy-duty driving axles use higher strength materials to improve the reliability by 15%.
Braking : The air over hydraulic disc brakes on 4 wheels feature stable braking and high safety and reliability.
Chassis : The front chassis adopts the box structure with integral casting lugs and the rear chassis adopts the special-shaped box beam welded by a variable rigidity bending plate, which has a higher carrying capacity. The hinged joint between the front and rear chassis adopts the structure of rolling bearing and knuckle bearing, which has higher bearing capacity and better working stability.
Wheel base : XCMG wheel loader LW500FN provides higher mobility and flexibility and outstanding field adaptability with short wheelbase and small turning radius. XCMG wheel loader LW500FN can reduce more fuel consumption and work more efficiently.

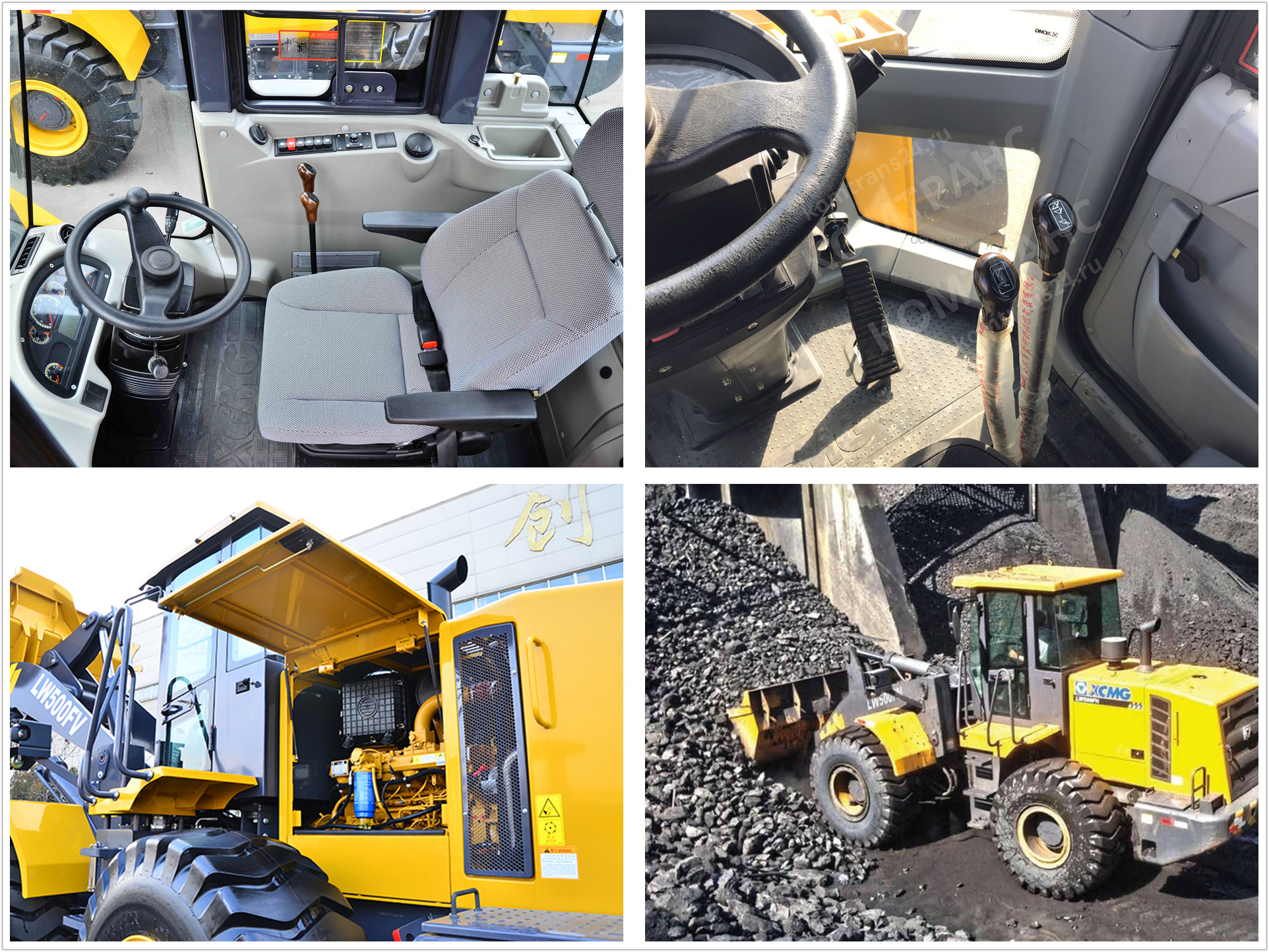

Cabin : The ergonomic cab adopts the integral structure, luxurious interior and good sound insulation and noise reduction measures. It has a wide field of view, large space, safety and high operating comfort. The digital VDO combination instrument is easy to observe. The steering system and working device have accurate and convenient operation functions. The steering wheel and seat can be adjusted freely according to the operator's habits. Panoramic glasses and super large spherical rear-view mirror ensure a wide field of view. XCMG wheel loader LW500FN is equipped with storage compartment, cup holder and charger, and optional air conditioner.
Ladders and handrails : They are convenient to get on and get off with higher safety,which are arranged ergonomically.
Bucket automatic high-position leveling : The bucket has the functions of automatic high-position dumping and leveling, and the stop block in the transportation position, which can improve the working efficiency and reduce the material splash during shovel loading works.
Bucket : The bucket is made of high-strength wear-resistant steel plate, which can increase the wear resistance and impact resistance by more than 30% and extend the service life.
Maintenance : The convenient daily maintenance can keep the machine in the best working condition all the time.
Attachments
(1) Standard bucket : It's installed with bucket guide plates to prevent the scattering of material from damaging the machine.
(2) Coal bucket : It’s dedicated for handling of bulk materials (such as coal), featuring high bucket capacity and high efficiency.
(3) Clamp : For grab and transport of various woods and tubing.
(4) Snow plough : For snow removing in roads and urban streets.
Application : engineering constructions, aggregate yards,coal logistics, quarry and mining.
