WHEEL LOADER SEM663D

SPECIFICATION

WHEEL LOADER SEM663D	SPECIFICATION
Rated load	6000 kg
Operating weight with standard bucket	19850 kg
Bucket capacity	2.9-5.5 m3
Wheel base	3350 mm
Overall dimension	8541 * 3092 * 3458mm
Max. Tractive force	186 kN
Max. Breakout force	197 kN
Max. Dumping height	3051 mm
Gearbox	SEM TR200
Gear shift	Forward 4 and reverse 4
Torque converter	Single stage, 3 elements
Max. Travel Speed	37 km/h
Axles	SEM SO32
Engine Model	WEICHAI WD10G240
Rated Power	175 kW @ 2200 r/min
Displacement	9.7 L
Boom raise time	5.3s
Hydraulic cycle time	9.7 s
System Pressure Setting	18 MPa
Service brake	Dry & Caliper, Air to oil control
Parking brake	Drum-Type Shoe Brake,   Spring Applied & Air Released
Tire Size	23.5-25

ADVANTAGE

• The engine of Bucket loader SEM663D is WEICHAI WD10G240 with 93% desert air cleaner to reduce earlier wearing 90% and new designed shock absorber.
• Bucket loader SEM663D can adapt all kinds of climate conditions with Large radiator for over 50℃ high temperature conditions and engine preheat for under -35℃ high cold conditions.
• Efficient hydraulic system of Bucket loader SEM663D is with dual pump flow converging system for lower fuel consumption and big tractive force and larger breakout force for higher productivity. The displacement of working pump can reach 112 cc for higher efficiency

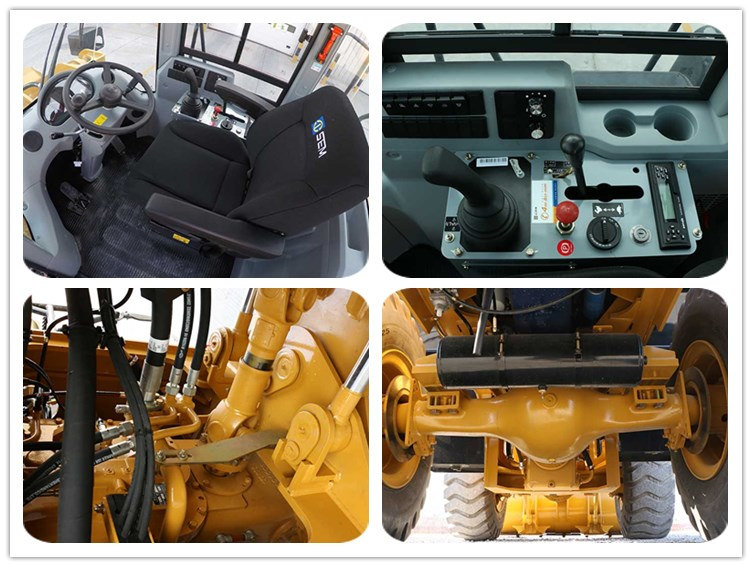

• Bucket loader SEM663D's cabin with big space, superior visibility, patented MAC mount for less noise and more comfort,sliding side window,fresh air circulated air conditioner, adjustable air flow outlet to deliver better defrost performance and Suspension adjustable seat.
• Bucket loader SEM663D is widely used in Landscaping, building, sewer/water in, local construction, Ready mix cement, concrete products, quarry/stone, clay, recycled aggregate, sand and gravel, Highway, street, tunnel, airport, residential commercial, port cargo handling, mineral yards, steel mills and other high demand applications In Quarry and Aggregate and Coal Mining.

• Chinese brands ranking in the world top 50 construction machinery manufacturers
