WHEEL LOADER SEM653D

SPECIFICATION

WHEEL LOADER SEM653D	PARAMETERS
Rated load	5000 kg
Operating weight with standard bucket	16700 kg
Bucket capacity	2.6-5.5 m3
Wheel base	3200 mm
Overall dimension	8085 * 2963 * 3463 mm
Max. Tractive force	171 kN
Max. Breakout force	177 kN
Max. Dumping height	3102 mm
Gearbox	TR200
Gear shift	Forward 4 and reverse 4
Torque converter	Single stage, 3 elements
Max. Travel Speed	39 km/h
Axles	SEM SO28
Engine Model	WEICHAI WD10G220
Rated Power	162 kW @ 2200 r/min
Displacement	9.7 L
Boom raise time	5.1s
Hydraulic cycle time	9.3 s
System Pressure Setting	18 MPa
Service brake	Dry & Caliper, Air to oil control
Parking brake	Drum-Type Shoe Brake,   Spring Applied & Air Released
Tire Size	23.5-25

ADVANTAGE

• The engine of wheel Loader SEM653D is WEICHAI WD10G220 with 93% desert air cleaner to reduce earlier wearing 90% and new designed shock absorber.
• Articulated Loader SEM653D can adapt all kinds of climate conditions with Large radiator for over 50℃ high temperature conditions and engine preheat for under -35℃ high cold conditions.
• Efficient hydraulic system of wheel Loader SEM653D is with dual pump flow converging system for lower fuel consumption and big tractive force and larger breakout force for higher productivity. The displacement of working pump can reach 112 cc for higher efficiency

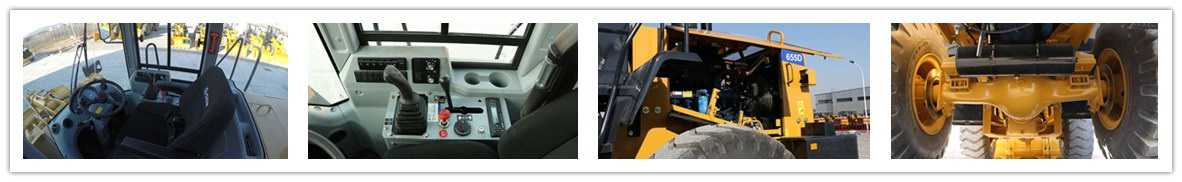

• Wheel Loader SEM653D's cabin with big space, superior visibility, patented MAC mount for less noise and more comfort,sliding side window,fresh air circulated air conditioner, adjustable air flow outlet to deliver better defrost performance and Suspension adjustable seat.
• Wheel Loader SEM653D is widely used in Landscaping, building, sewer/water in, local construction, Ready mix cement, concrete products, quarry/stone, clay, recycled aggregate, sand and gravel, Highway, street, tunnel, airport, residential commercial.

• Chinese brands ranking in the world top 50 construction machinery manufacturers
