FRONT END LOADER SEM652D

  Front end loader SEM652D with 2.7 m3 bucket, mechanical control, WEICHAI 162kW engine, 23.5-25 tyres, 16145kg operating weight and air conditioner offers heavy-duty, reliability and durability, energy-saving, comfort, convenient maintenance and customization for Municipal, Construction, Mining, Forestry, Road, Railway, Port.

SPECIFICATION

FRONT END LOADER SEM652D	SPECIFICATION
Rated load	5000 kg
Operating weight with standard bucket	16145 kg
Bucket capacity	2.7-4.5 m3
Wheel base	3000 mm
Overall dimension	8062 * 2963 * 3348 mm
Max. Tractive force	166 kN
Max. Breakout force	159 kN
Max. Dumping height	3100 mm
Gearbox	SEM TR200
Gear shift	Forward 4 and reverse 4
Torque converter	Single stage, 3 elements
Max. Travel Speed	39 km/h
Driving Axles	Meritor
Engine Model	WEICHAI WD10G220
Rated Power	162 kW @ 2200 r/min
Displacement	9.7 L
Boom raise time	4.92 s
Hydraulic cycle time	8.8 s
System Pressure Setting	17 MPa
Service brake	Dry & Caliper, Air to oil control
Parking brake	Drum-Type Shoe Brake,   Spring Applied & Air Released
Tire Size	23.5-25

ADVANTAGE

• The engine of Front end loader SEM652D is WEICHAI WD10G220 with 93% desert air cleaner to reduce earlier wearing 90% and new designed shock absorber.
• Front end loader SEM652D can adapt all kinds of climate conditions with Large radiator for over 50℃ high temperature conditions and engine preheat for under -35℃ high cold conditions.
• Efficient hydraulic system of Front end loader SEM652D is with dual pump flow converging system for lower fuel consumption and big tractive force and larger breakout force for higher productivity. The displacement of working pump can reach 112 cc for higher efficiency

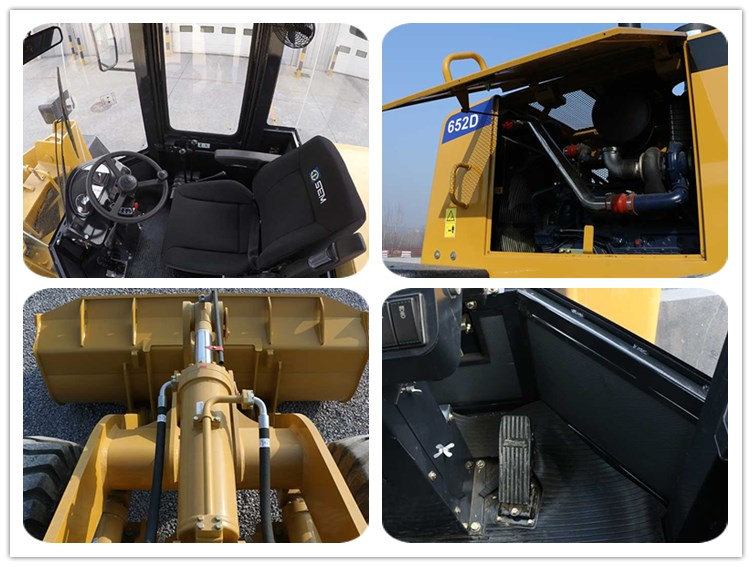

• Front end loader SEM652D's cabin with big space, superior visibility, patented MAC mount for less noise and more comfort,sliding side window,fresh air circulated air conditioner, adjustable air flow outlet to deliver better defrost performance and Suspension adjustable seat.
• Front end loader SEM652D is widely used in sand and gravel plants, coal yard, construction site and other loose material places etc . Short wheelbase for narrow site with higher efficiency.
