MOTOR GRADER SEM918
| MOTOR GRADER | SEM918 |
|---|---|
| Operating weight | 14500 kg |
| Overall dimension (L*W*H) | 8703*2630*3360 mm |
| Blade dimension (L*W*H) | 3974*25*607 mm |
| Max. lifting height | 475 mm |
| Max. cutting depth | 715 mm |
| Max. Tractive force | 81 kN |
| Wheel base | 6140 mm |
| Engine model | SDEC SC8D190.1G2 |
| Rated power | 140 kW (190HP) |
| Transmission | Hangchi 6WG180 |
| Travel speed (F/R) | 40 / 25 km/h |
| Rear axle / Tandem | SEM ST22 |
| Hydraulic system | Load sensing,PPPC |
| Fuel tank | 320 L |
| Hydraulic oil tank | 55 L |
SEM918 motor grader is the road grader machine standard with SDEC 190HP engine, 13FT(3960mm) blade,14.5ton operating weight and air conditioner manufactured by CQL. front blade and rear ripper & scarifier are optional for SEM918 motor grader. As the special road construction equipment, SEM918 motor grader can be widely used for Farm and agriculture, Forestry, Construction, Snow Removing and plowing, Soil and Gravel Road Maintenance, Engineering, Mining, Railway,Highway,Airport, Municipal Construction,Water Conservancy,Hydropower,Waste etc.
| STANDARD DEVICE | OPTIONAL DEVICE |
|---|---|

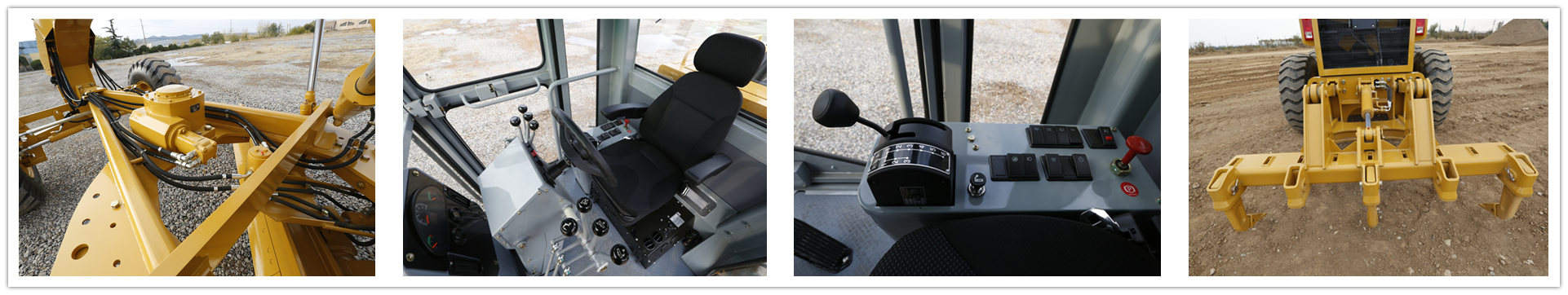

| POWER SYSTEM • SDEC SC7H TIER-III engine (Electric control, Common rail Four-valve structure, supercharged and intercooled) • Hydraulic driven fan • HANGCHI ADVANCE electric control gearbox. • SEM tandem driving axle with 4 planetary gears final drive and Sprocket shafts and bearings with forced oil bath lubrication • Grease-free lubrication rear drive axle with heavy-duty tightening adjustment-free drive chain • 17.5-25 tires |
• Low temperature start • Overload protection Turbine gearbox • 17.5-25-16PR tubeless tires • 17.5-25 radial tires |
| CABIN & CONTROL SYSTEM • Air conditioner • Electric control walking joystick • Hydraulic pilot working joystick • Cab mounted on the front frame • Dashboard with 3 levels alarming monition system • 1.9 meters cabin inner height • Multi-directional adjustable shock-absorbing seat with armrest and headrest • adjustable steering column • Toolbox |
• 7 position link bar with electric over hydraulic control • ROPS FOPS cabin assy |
| CHASSIS SYSTEM • Front frame Maintenance-free bushings • Replaceable drawbar draft ball (bolted – not welded) • A-type traction frame with box structure • Detachable bolt-fixed traction frame connecting ball head |
|
| HYDRAULIC SYSTEM • Proportional Priority Pressure Compensating (PPPC) Valves • variable displacement piston pump • Load-sensing hydraulic system • Inboard lock check valves within PPPC |
|
| WORKING SYSTEM • 13FT blade • Standard blade float function • Quick DCM re-positioning • Replaceable bushings |
• 12FT blade • 14FT blade •Front blade • Front counterweight • Rear 3 teeth ripper • Rear 5 teeth ripper • Rear scarifier |
