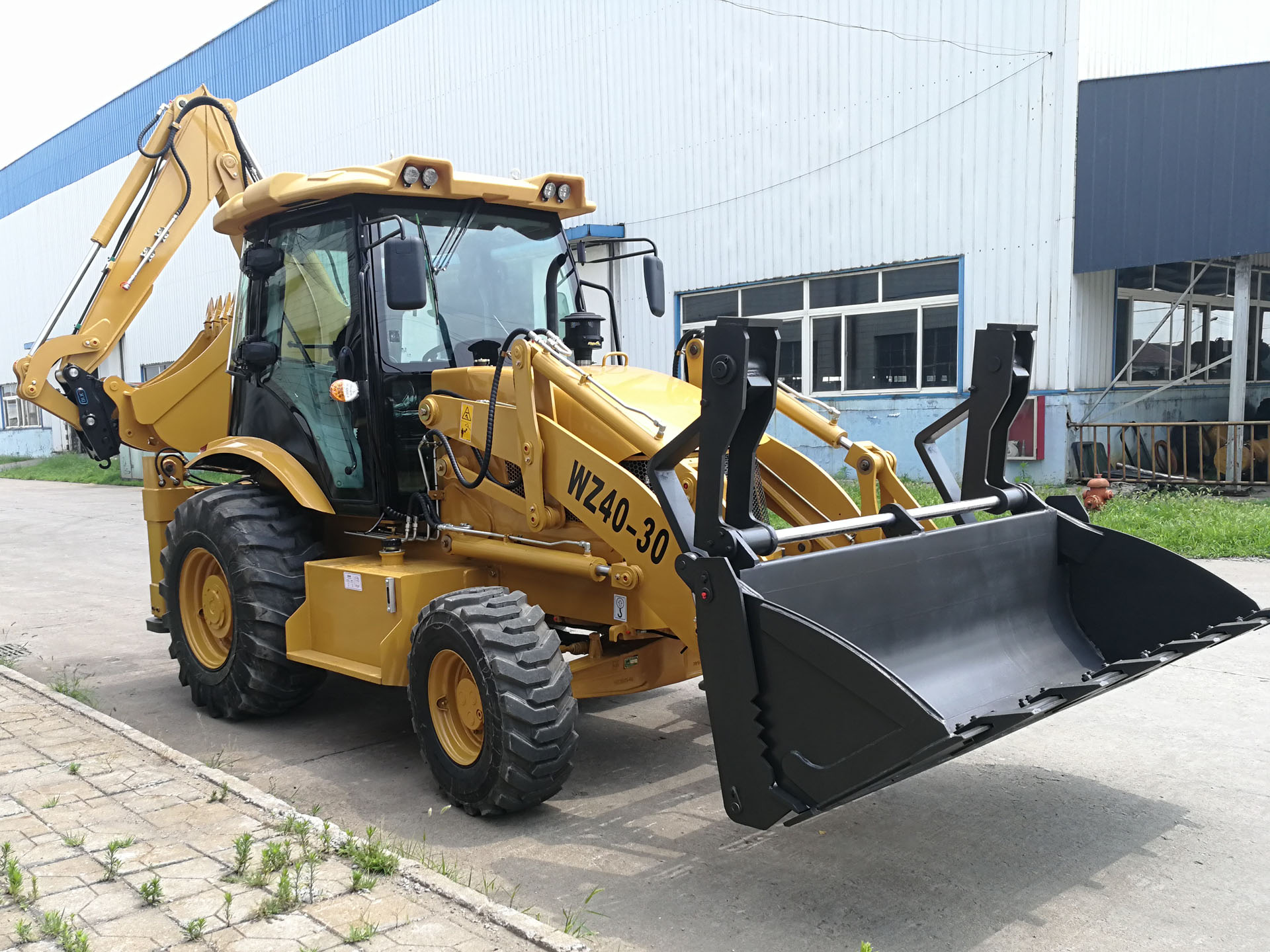

4X4 Backhoe Loader WZ40-30
Our new side shift 4X4 backhoe loader WZ40-30 with 8200kg operating weight and 75kw diesel engine is hot-selling in Russia, Australia, Indonesia, Saudi Arabia, Iran, Thailand, UAE, Philippines, Malaysia, South Africa, New Zealand, Qatar, Sudan, Angola, Kenya, Oman, Tanzania, Ghana, Congo, Cameroon, Uganda, Zambia, Gabon, Mozambique, Botswana ,Namibia, Kazakhstan, Uzbekistan. Our backhoe loader WZ40-30 can also install air conditioner, CUMMINS 74kW engine and Italy CARRARO electric control gearbox and wet type driving axles. Our backhoe loaders are widely applied to civil engineering works including site clearing, bulk earthworks, civil construction, roadworks, demolition and large scale electrical, plumbing and communications services, trenching, earthmoving and digging works, Urban And Limited-Space Environments.
Optional attachments includes 6-in-1 multipurpose bucket, 4-in-1 multipurpose bucket, pallet fork, forestry wood grapple (log clamp), hydraulic hammer, driller, telescopic boom (5.8 meters digging depth) etc.
SPECIFICATION
4X4 BACKHOE LOADER | WZ40-30 |
---|---|
Performance | |
Operating weight | 8200 kg |
Driving type | 4x4 |
Operation type | Hydraulic pilot joystick |

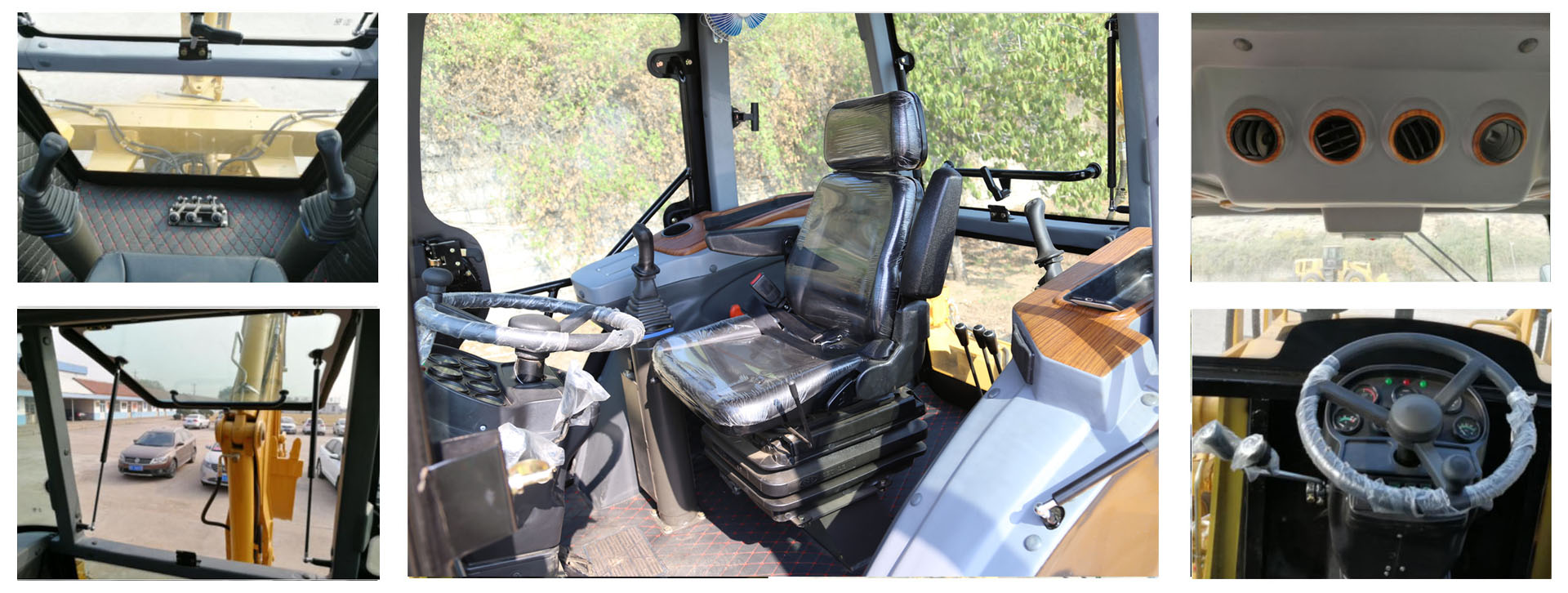

Cabin | 2-door, adjustable suspension seat with armrest and safety belt, rear open window, LED lamp, cabin heater, Air conditioner(optional) |
Dimension | 5920 * 2250 * 3770 mm |
Min. Turning Radius | 6950 mm |
Loader Performance | |
Rated load | 2500 kg |
Bucket capacity | 1.0 m3 |
Max. Dumping height | 2650 mm |
Dumping reach at max. dumping height | 1060 mm |
Optional attachments | quick hitch, 4-in-1 multipurpose bucket, wood grapple, pallet fork etc |
Excavator Performance | |
Outriggers | Side shift / Pivot center |
Bucket capacity | 0.3 m3 |
Max. Digging depth | 4080 mm / 5800 mm(Telescopic boom) |
Max. Digging radius | 6120 mm |
Optional attachments | quick hitch, narrow bucket,hydraulic breaker, auger driller etc |
Engine | |
Brand | YUCHAI / CUMMINS |
Model | YC4A105Z-T20 / 4BTA3.9-C100 |
Rated Power | 75 Kw (102 hp) / 74 kW (100HP) |
Type | 4-cylinders, water-cooling, turbocharged. diesel |
Transmission | |
Gearbox | Countershaft Powershift |
Gear shift | Forward 2 and reverse 2 |
Service brake | Air over oil caliper type |
Tyres | Front 14-17.5 and rear 19.5L-24 |
Max. Travel speed | 28 km/h |
