MINI BACKHOE LOADER WZ30-16

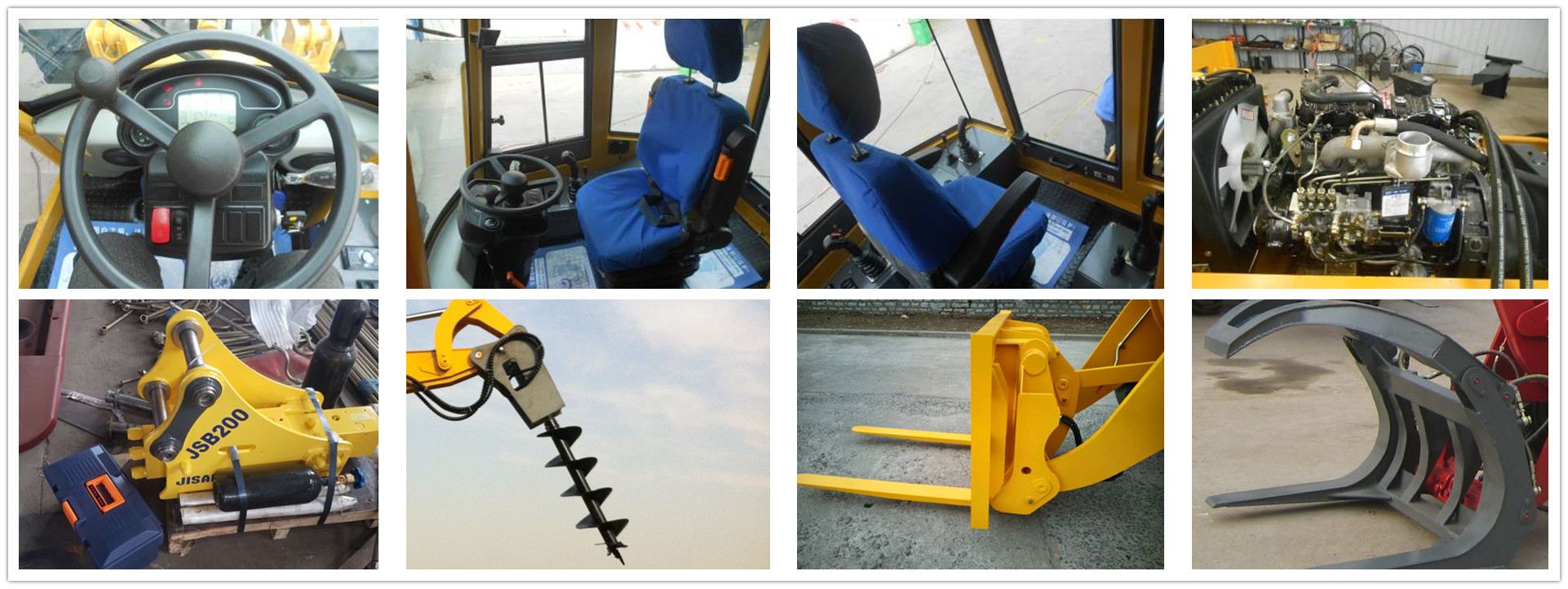

Pivot center 4X4 mini backhoe loader WZ30-16 with 0.8 m3 loader bucket and 0.2 m3 digger bucket, air conditioner, 5200kg operating weight and 37kw (50HP) diesel engine is widely used for construction, agriculture and municipal civil works. 4-in-1 bucket, pallet fork, hydraulic breaker, auger driller and wood grapple are optional. Our backhoe loaders are widely applied to civil engineering works including site clearing, bulk earthworks, civil construction, roadworks, demolition and large scale electrical, plumbing and communications services, earthmoving and digging works.
SPECIFICATION
| BACKHOE LOADER | WZ30-16 |
|---|---|
| Performance | |
| Operating weight | 5200 kg |
| Driving type | 4x4 |
| Operation type | Hydraulic pilot joystick |
| Dimension | 5300 * 1960 * 2900 mm |
| Min. Turning Radius | 4800 mm |
| Loader Performance | |
| Rated load | 1600 kg |
| Bucket capacity | 0.8 m3 |
| Max. Dumping height | 2700 mm |
| Dumping reach at max. dumping height | 1000 mm |
| Optional attachments | quick hitch, 4-in-1 multipurpose bucket, wood grapple, pallet fork etc |
| Excavator Performance | |
| Outriggers | Pivot Center |
| Bucket capacity | 0.2 m3 |
| Max. Digging depth | 3400 mm |
| Max. Digging radius | 4600 mm |
| Optional attachments | quick hitch, narrow bucket,hydraulic breaker, auger driller etc |
| Engine | |
| Brand | YUNNEI / XINCHAI |
| Model | 490 |
| Rated Power | 37 kW (50HP) |
| Type | 4-cylinders, water-cooling, diesel |
| Transmission | |
| Gearbox | Countershaft Powershift |
| Gear shift | Forward 2 and reverse 2 |
| Service brake | Air over oil caliper type |
| Tyres | 20.5/70-16 |
| Max. Travel speed; | 28 km/h |
